JOURNAL OF CHILEAN CHEMICAL SOCIETY

Vol 70 No 3 (2025): Journal of The Chilean Chemical Society
Original Research Papers

DESIGN AND CHARACTERIZATION OF A BILAYER SODIUM ALGINATE/CARBOXYMETHYL CELLULOSE PATCH ENRICHED WITH CANNABIDIOL AND ACTIVATED CARBON FOR POTENTIAL USE IN ACNE TREATMENT

PDF
  • Maria Angelica Velandia Paris,
  • Emerson León ,
  • Hector David Garzón
Maria Angelica Velandia Paris
Universidad El Bosque
Published November 10, 2025
Keywords
  • Cannabidiol,
  • Activated carbon,
  • acne,
  • patch,
  • natural polymers,
  • green methods
    • ...More
    Less
How to Cite
Velandia Paris, M. A., León Ávila, E. E., & Garzón , H. D. (2025). DESIGN AND CHARACTERIZATION OF A BILAYER SODIUM ALGINATE/CARBOXYMETHYL CELLULOSE PATCH ENRICHED WITH CANNABIDIOL AND ACTIVATED CARBON FOR POTENTIAL USE IN ACNE TREATMENT. Journal of the Chilean Chemical Society, 70(3), 6359-6365. Retrieved from https://www.jcchems.com/index.php/JCCHEMS/article/view/2777

Copyright (c) 2025 SChQ

Creative Commons License

This work is licensed under a Creative Commons Attribution-NonCommercial-ShareAlike 4.0 International License.

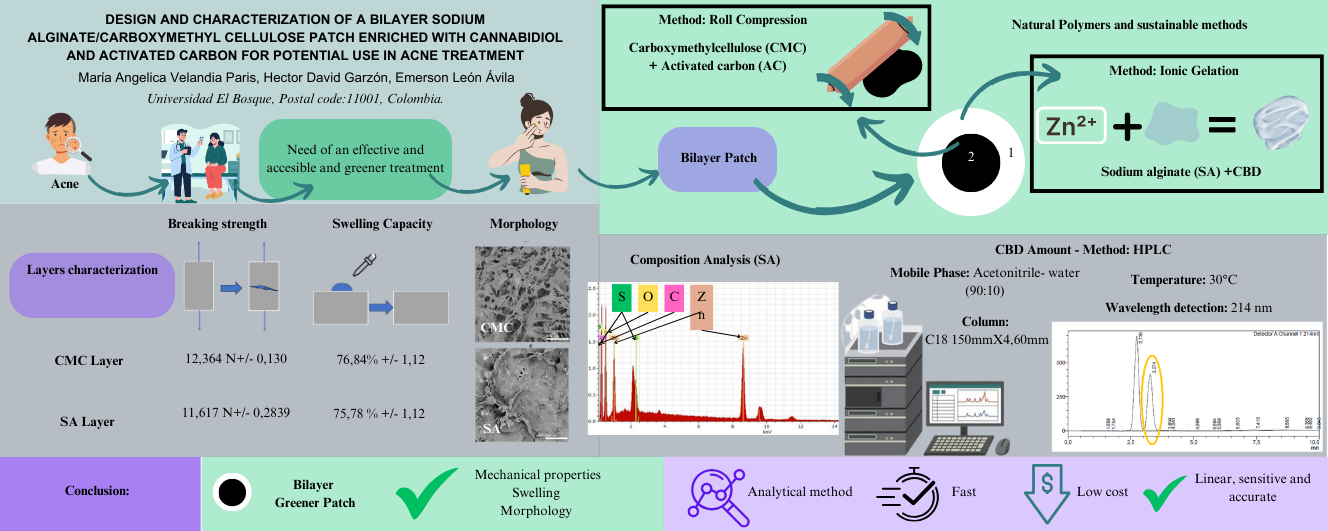

Abstract

This research explores the use of natural polymers as a sustainable alternative to synthetic polymers for developing patches with diverse applications. We created a bilayer patch utilizing sodium alginate (SA) and carboxymethylcellulose (CMC) as natural polymers. Each layer contained an active ingredient: cannabidiol (CBD) in the SA layer and activated carbon (AC) in the CMC layer. CBD and AC were chosen due to their potential as natural treatments for skin conditions like acne. The SA layer was formed using ionic gelation, while the CMC layer was created through compression, both considered eco-friendly methods.

The mechanical properties of the patch were evaluated, showing the SA layer had a breaking strength of 11.617 N ± 0.2839, and the CMC layer had a strength of 12.36 N ± 0.1300. Both layers exhibited effective swelling capacity for exudate containment, with swelling percentages of 75.78% ± 1.120 for SA and 76.84% ± 1.171 for CMC. The morphology of the layers met expectations.

To quantify the amount of CBD in the patch, high-performance liquid chromatography was employed, optimizing separation conditions based on the column used. The analysis revealed that the SA layer contained 2.08 mg of CBD. The analytical method proved accurate for quantifying CBD in various patch samples.

In summary, the developed bilayer patch, using natural materials and sustainable techniques, presents a viable alternative to conventional acne treatments. It demonstrates suitable mechanical properties and effective CBD release, aligning with greener and more sustainable practices.




PDF

References

  1. Jana S, Kumar Basu S, Field B. Natural Polymers and their Application in Drug Delivery and Biomedical Field Natural Polymers and their Application in Drug Delivery and. vol. 1. 2011.
  2. Saquib Hasnain M, Kumar Nayak A, Hasnain M, Nayak A, Ahmad F, Singh R. Emerging Trends of Natural-Based Polymeric Systems for Drug Delivery in Tissue Engineering Applications SCIENCE JOURNAL Ubon Ratchathani University Emerging Trends of Natural-Based Polymeric Systems for Drug Delivery in Tissue Engineering Applications. vol. 1. n.d.
  3. Rahman MT, Hismat U, Tripura R, Dutta Choudhury P, Debnath B, Das S. Overview on Natural Polymers: A Promising Pharmaceutical excipient in Mucoadhesive Drug Delivery System. Research Journal of Pharmacy and Technology 2024:915–9. https://doi.org/10.52711/0974-360X.2024.00142.
  4. Malafaya PB, Silva GA, Reis RL. Natural-origin polymers as carriers and scaffolds for biomolecules and cell delivery in tissue engineering applications. Advanced Drug Delivery Reviews 2007;59:207–33. https://doi.org/10.1016/j.addr.2007.03.012.
  5. Kandar CC, Hasnain MS, Nayak AK. Natural polymers as useful pharmaceutical excipients. Elsevier Inc.; 2021. https://doi.org/10.1016/B978-0-12-820043-8.00012-8.
  6. Chaturvedi K, Ganguly K, More UA, Reddy KR, Dugge T, Naik B, et al. Sodium alginate in drug delivery and biomedical areas. Elsevier Inc.; 2019. https://doi.org/10.1016/B978-0-12-817055-7.00003-0.
  7. Kothale D, Verma U, Dewangan N, Jana P, Jain A, Jain D. Alginate as Promising Natural Polymer for Pharmaceutical, Food, and Biomedical Applications. Current Drug Delivery 2020;17:755–75. https://doi.org/10.2174/1567201817666200810110226.
  8. Jadach B, Świetlik W, Froelich A. Sodium Alginate as a Pharmaceutical Excipient: Novel Applications of a Well-known Polymer. Journal of Pharmaceutical Sciences 2022;111:1250–61. https://doi.org/10.1016/j.xphs.2021.12.024.
  9. Morozkina S, Strekalovskaya U, Vanina A, Snetkov P, Krasichkov A, Polyakova V, et al. The Fabrication of Alginate–Carboxymethyl Cellulose-Based Composites and Drug Release Profiles. Polymers 2022;14. https://doi.org/10.3390/polym14173604.
  10. Vinklárková L, Masteiková R, Foltýnová G, Muselík J, Pavloková S, Bernatonienė J, et al. Film wound dressing with local anesthetic based on insoluble carboxymethycellulose matrix. Journal of Applied Biomedicine 2017;15:313–20. https://doi.org/10.1016/j.jab.2017.08.002.
  11. Maver T, Hribernik S, Mohan T, Smrke DM, Maver U, Stana-Kleinschek K. Functional wound dressing materials with highly tunable drug release properties. RSC Advances 2015;5:77873–84. https://doi.org/10.1039/C5RA11972C.
  12. Zhang W, Liu Y, Xuan Y, Zhang S. Synthesis and Applications of Carboxymethyl Cellulose Hydrogels. Gels 2022;8. https://doi.org/10.3390/gels8090529.
  13. Kanikireddy V, Varaprasad K, Jayaramudu T, Karthikeyan C, Sadiku R. Carboxymethyl cellulose-based materials for infection control and wound healing: A review. International Journal of Biological Macromolecules 2020;164:963–75. https://doi.org/10.1016/j.ijbiomac.2020.07.160.
  14. ABC para solicitar las licencias de uso de semillas para siembra y cultivo de plantas de cannabis psicoactivo y no psicoactivo con fines médicos y científicos. 2017.
  15. Bonini SA, Premoli M, Tambaro S, Kumar A, Maccarinelli G, Memo M, et al. Cannabis sativa: A comprehensive ethnopharmacological review of a medicinal plant with a long history. Journal of Ethnopharmacology 2018;227:300–15. https://doi.org/10.1016/j.jep.2018.09.004.
  16. Martins AM, Gomes AL, Boas IV, Marto J, Ribeiro HM. Cannabis-Based Products for the Treatment of Skin Inflammatory Diseases: A Timely Review. Pharmaceuticals 2022;15. https://doi.org/10.3390/ph15020210.
  17. J Idkowiak-Baldys, F Liebel, JR Glynn. ABSTRACTS | Epidermal Structure and Barrier Function. Journal of Investigative Dermatology 2020;140.
  18. Zheng Z, Qi J, Hu L, Ouyang D, Wang H, Sun Q, et al. A cannabidiol-containing alginate based hydrogel as novel multifunctional wound dressing for promoting wound healing. Biomaterials Advances 2022;134. https://doi.org/10.1016/j.msec.2021.112560.
  19. Batista RA, Otoni CG, Espitia PJP. Fundamentals of chitosan-based hydrogels: Elaboration and characterization techniques. Materials for Biomedical Engineering: Hydrogels and Polymer-based Scaffolds, Elsevier; 2019, p. 61–81. https://doi.org/10.1016/B978-0-12-816901-8.00003-1.
  20. Ma J, Liu Y, Chen S, Du Y, Wu H. Changes in the pore structure of modified sludge-activated carbon and its effect on the adsorption characteristics of CO2 under high pressure. Microporous and Mesoporous Materials 2022;345. https://doi.org/10.1016/j.micromeso.2022.112255.
  21. Ajiteru O, Lee OJ, Kim JH, Lee YJ, Lee JS, Lee H, et al. Fabrication and characterization of a myrrh hydrocolloid dressing for dermal wound healing. Colloids and Interface Science Communications 2022;48. https://doi.org/10.1016/j.colcom.2022.100617.
  22. Peptu CA, Băcăiță ES, Logigan CLS, Luțcanu M, Agop M. Hydrogels based on alginates and carboxymethyl cellulose with modulated drug release—an experimental and theoretical study. Polymers 2021;13. https://doi.org/10.3390/polym13244461.
  23. PwC-Colombia Productiva Estrategia sectorial. 2019.
  24. Yu H, Kim JS, Kim DW, Park ES, Youn YS, Din F ud, et al. Novel composite double-layered dressing with improved mechanical properties and wound recovery for thermosensitive drug, Lactobacillus brevis. Composites Part B: Engineering 2021;225. https://doi.org/10.1016/j.compositesb.2021.109276.
  25. Dimethicone. SpecialChem n.d. https://cosmetics.specialchem.com/inci-ingredients/dimethicone (accessed August 15, 2023).
  26. Jiang M, Dai J, Dong G, Wang Z. A comparative study of invariant-based hyperelastic models for silicone elastomers under biaxial deformation with the virtual fields method. Journal of the Mechanical Behavior of Biomedical Materials 2022;136. https://doi.org/10.1016/j.jmbbm.2022.105522.
  27. Zheng Z, Qi J, Hu L, Ouyang D, Wang H, Sun Q, et al. A cannabidiol-containing alginate based hydrogel as novel multifunctional wound dressing for promoting wound healing. Biomaterials Advances 2022;134. https://doi.org/10.1016/j.msec.2021.112560.
